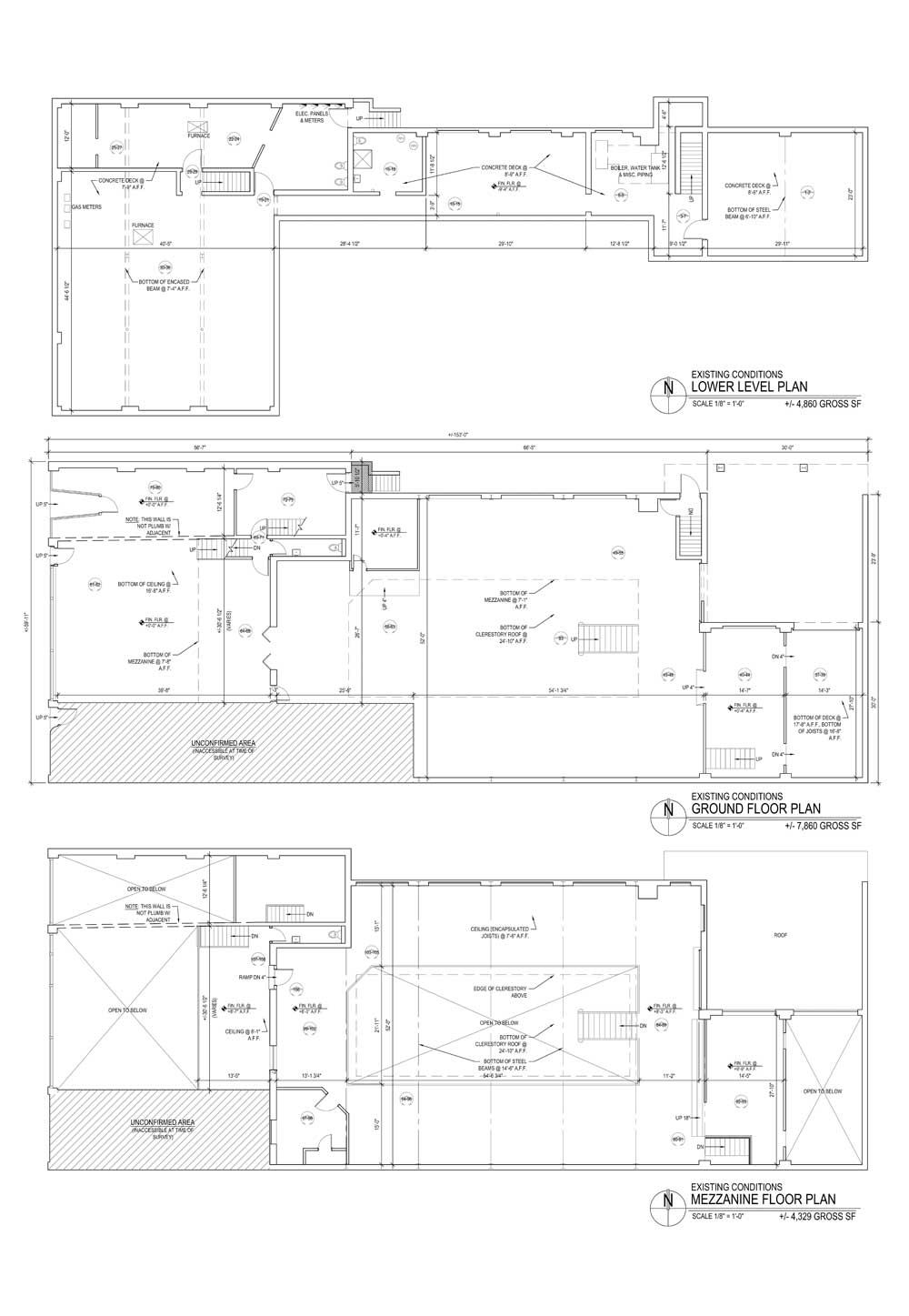

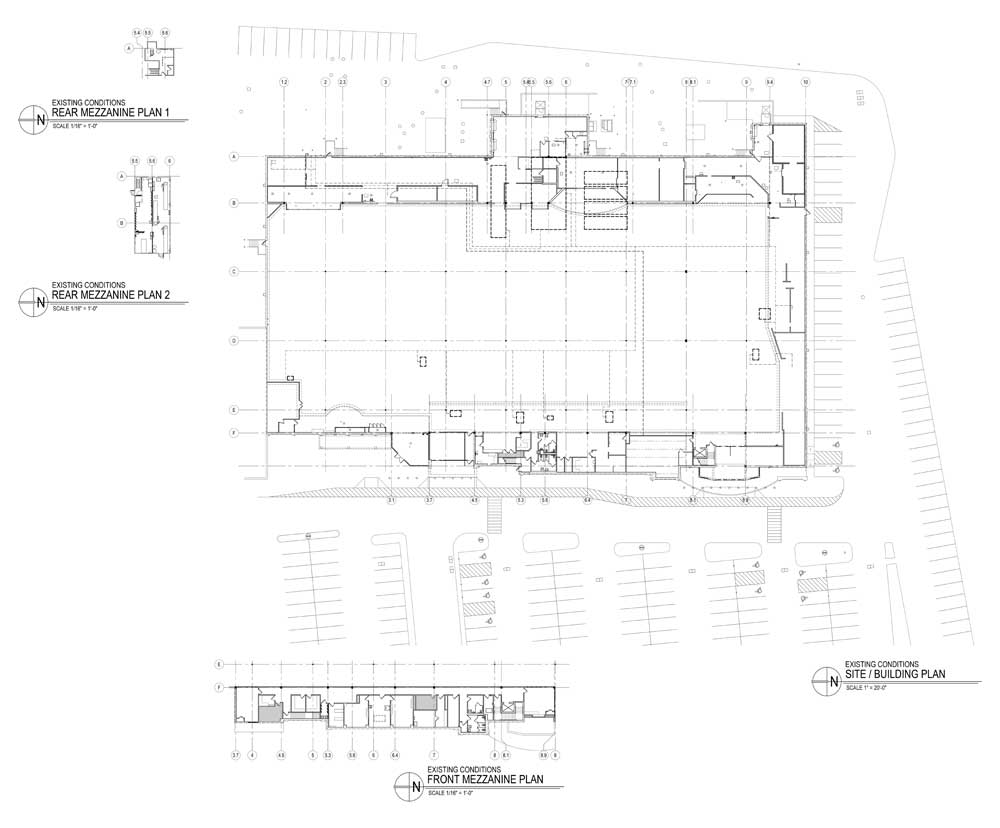

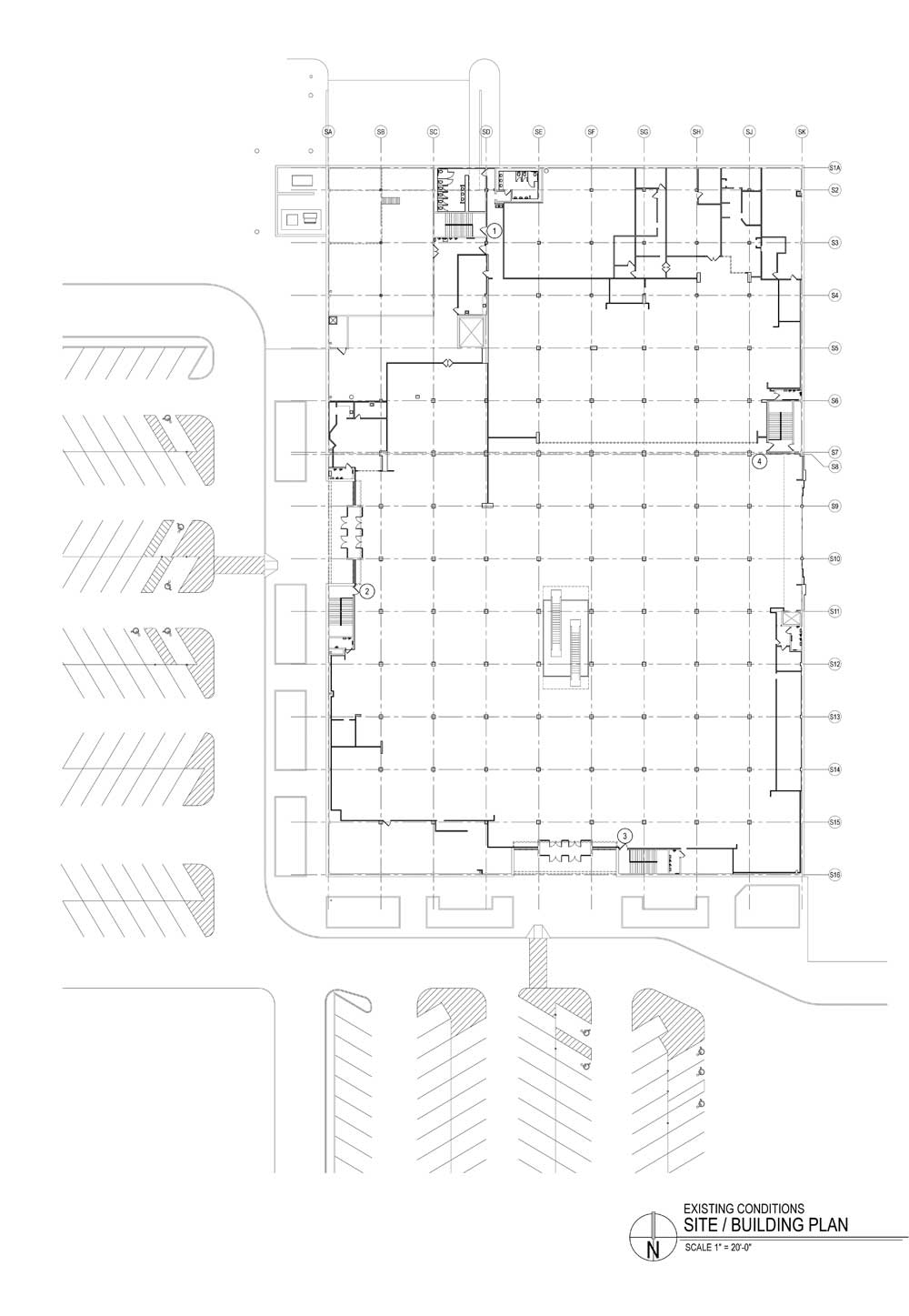

Floor Plans

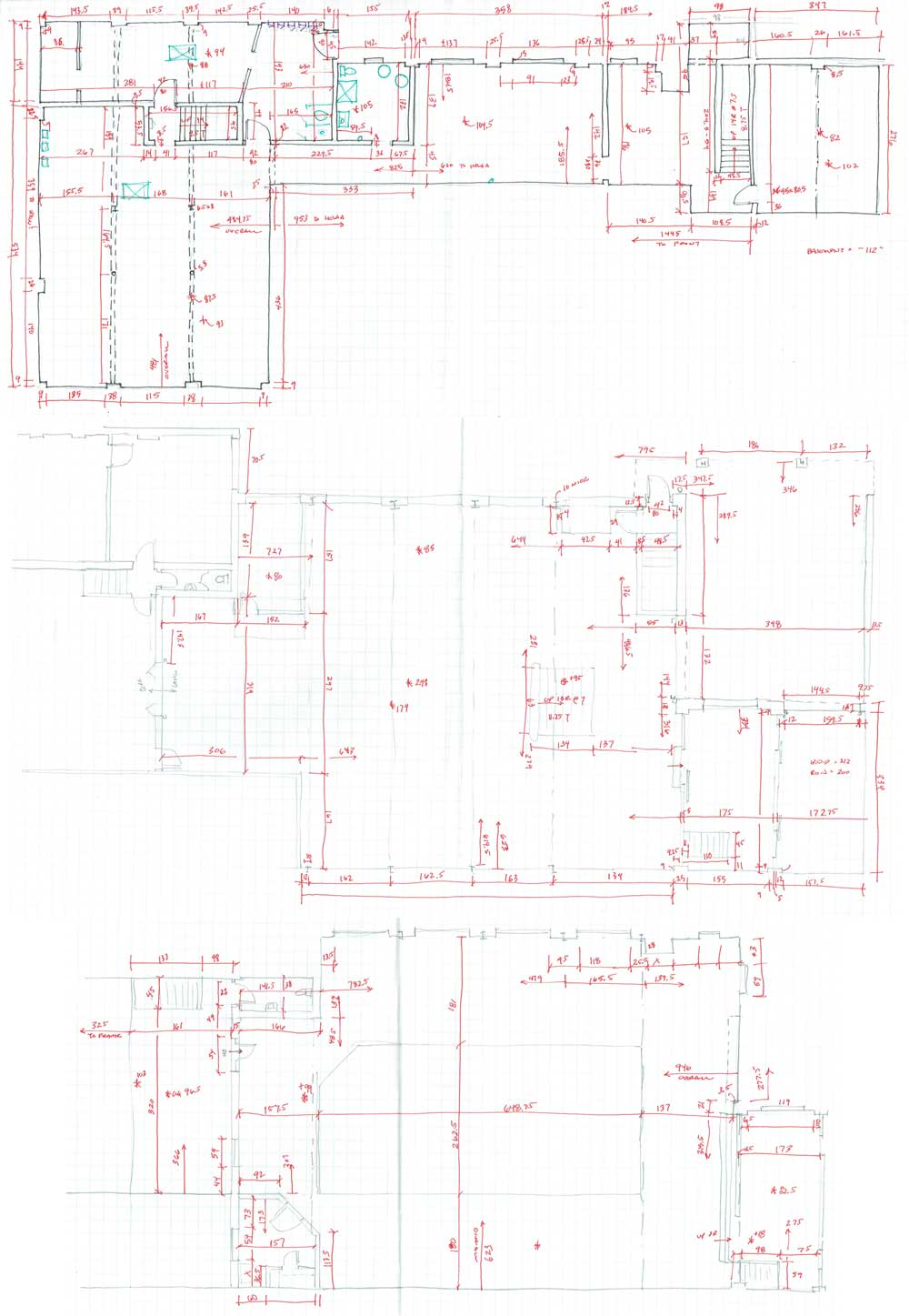

Standard floor plans include interior & exterior walls, doors, windows, openings, stairs, built-in features, floor finishes, structural components, electrical equipment, mechanical equipment & distribution, plumbing fixtures, & measurements of all accessible spaces.

All drawings will be completed in AutoCAD 2015 (or earlier) format & saved as PDF drawings for simple viewing & distribution.
